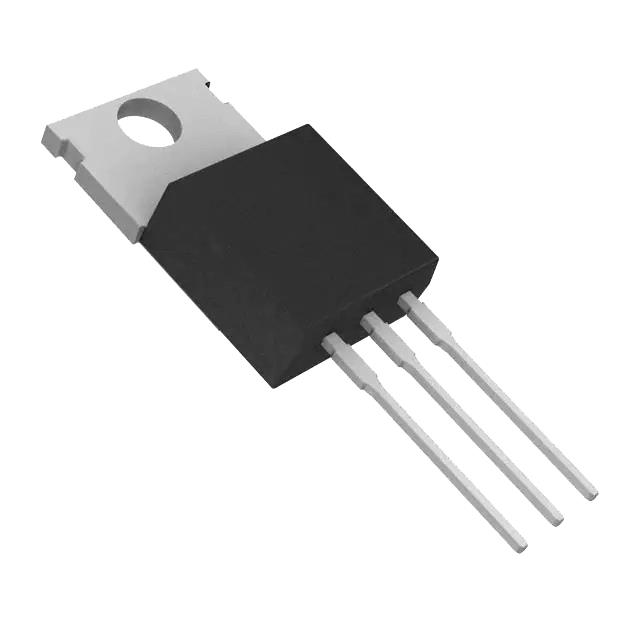

| Part number: | FCP165N65S3 |
| Description: | POWER MOSFET, N-CHANNEL, SUPERFE |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Bulk |
| Quantity | 144 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 19A (Tc) |
| Rds On (Max) @ Id, Vgs | 165mOhm @ 9.5A, 10V |
| Power Dissipation (Max) | 154W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 1.9mA |
| Supplier Device Package | TO-220-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 39 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1500 pF @ 400 V |
|
