| Part number: | 50YXS56MEFC6.3X11 |

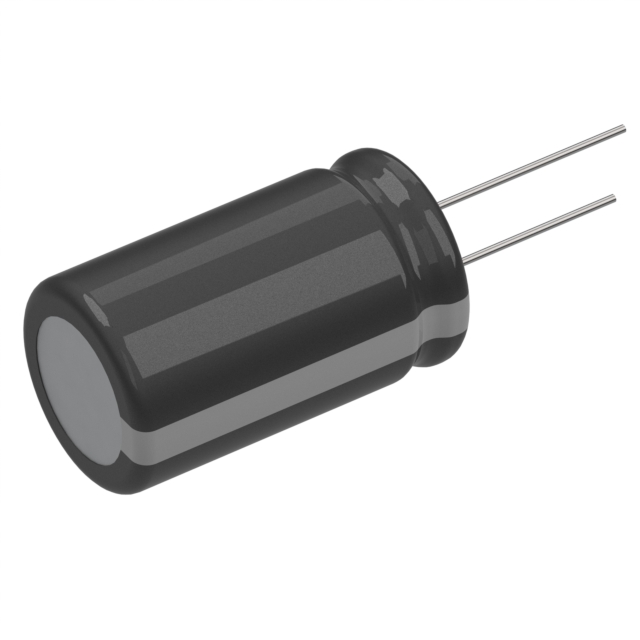

| Description: | CAP ALUM 56UF 20% 50V RADIAL |
| Manufacturer | Rubycon |
| Encapsulation | Bulk |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rubycon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.098" (2.50mm) |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Capacitance | 56 µF |
| Voltage - Rated | 50 V |
| Impedance | 220 mOhms |
| Ripple Current @ Low Frequency | 170 mA @ 120 Hz |
| Ripple Current @ High Frequency | 340 mA @ 100 kHz |
|
