| Part number: | 6.3YXS12000MEFC16X35.5 |

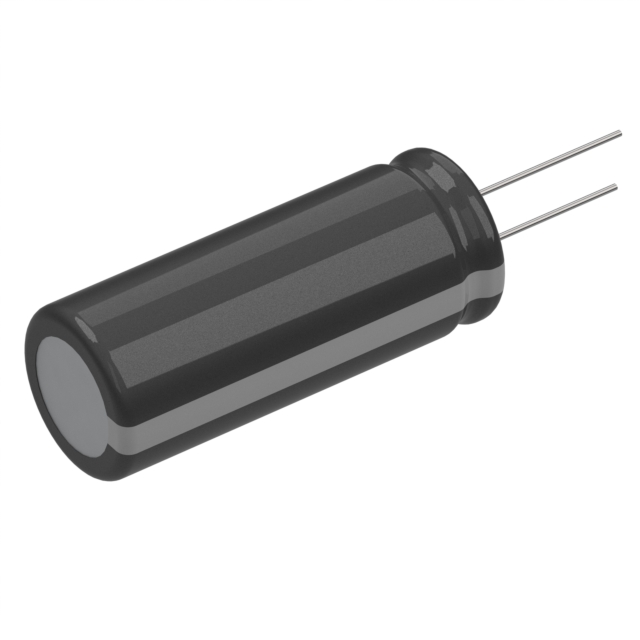

| Description: | CAP ALUM 12000UF 20% 6.3V RADIAL |
| Manufacturer | Rubycon |
| Encapsulation | Bulk |
| Quantity | 200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rubycon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.295" (7.50mm) |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Capacitance | 12000 µF |
| Voltage - Rated | 6.3 V |
| Impedance | 15 mOhms |
| Ripple Current @ Low Frequency | 2.856 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.08 A @ 100 kHz |
|
