| Part number: | 1548060000 |

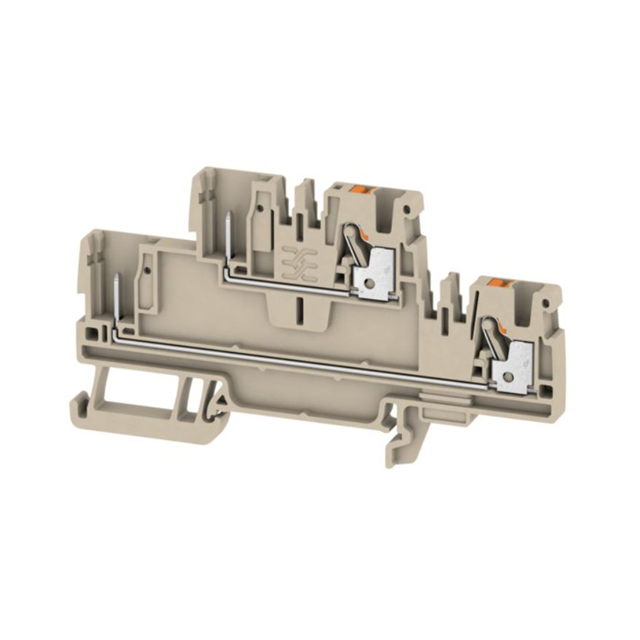

| Description: | MULTI-TIER MODULAR TERMINAL, PUS |
| Manufacturer | Weidmuller |
| Encapsulation | Box |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Weidmuller" |
| Mounting Type | DIN Rail |
| Length | 1.988" (50.50mm) |
| Type | Plug Connection |
| Operating Temperature | -60°C ~ 130°C |
| Termination Style | Plug Receptacles, Push In, Spring |
| Material - Insulation | Thermoplastic, Wemid |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 2 |
| Terminal - Width | 5.1mm |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.5-2.5mm² |
| Height (Max) | 3.583" (91.00mm) |
| Housing Color | Beige |
| Stripping Length | 10mm |
| Current - UL | 20 A |
| Current - IEC | 24 A |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Number of Positions | 4 |
|
