| Part number: | MHE06033R3M-10 |

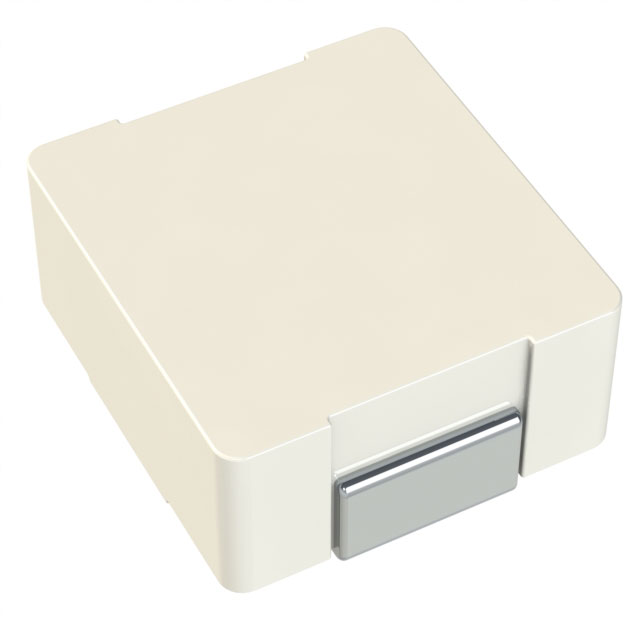

| Description: | HIGH CURRENT LOW DCR POWER INDUC |
| Manufacturer | Laird-Signal Integrity Products |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Laird-Signal Integrity Products" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.283" L x 0.256" W (7.20mm x 6.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -40°C ~ 150°C |
| DC Resistance (DCR) | 19.2mOhm Max |
| Frequency - Self Resonant | 25MHz |
| Current - Saturation (Isat) | 11A |
| Inductance Frequency - Test | 1 MHz |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Inductance | 3.3 µH |
| Current Rating (Amps) | 8 A |
|
