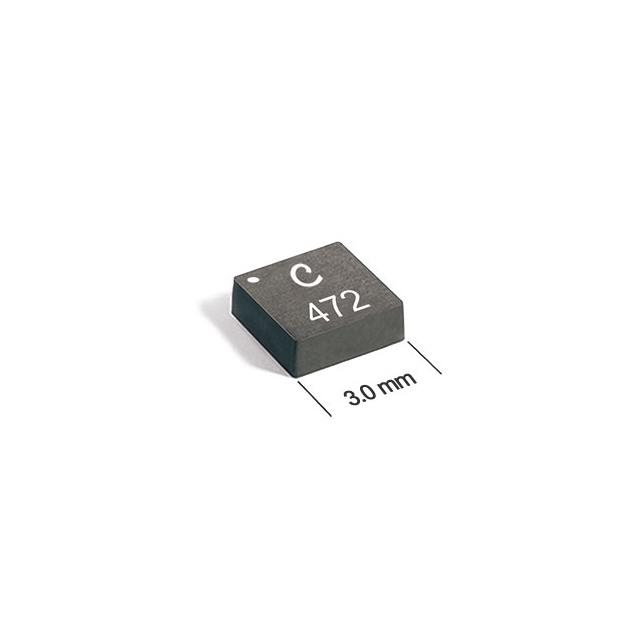

| Part number: | XFL3012-473MEC |
| Description: | XFL3012-473MEC |
| Manufacturer | COILCRAFT |
| Encapsulation | Strip |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "COILCRAFT" |
| Tolerance | ±20% |
| Package / Case | 1212 (3030 Metric) |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 1.32Ohm Max |
| Frequency - Self Resonant | 13.7MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 320mA |
| Material - Core | Metal Composite |
| Inductance Frequency - Test | 1 MHz |
| Supplier Device Package | 1212 |
| Height - Seated (Max) | 0.051" (1.30mm) |
| Inductance | 47 µH |
| Current Rating (Amps) | 330 mA |
|
