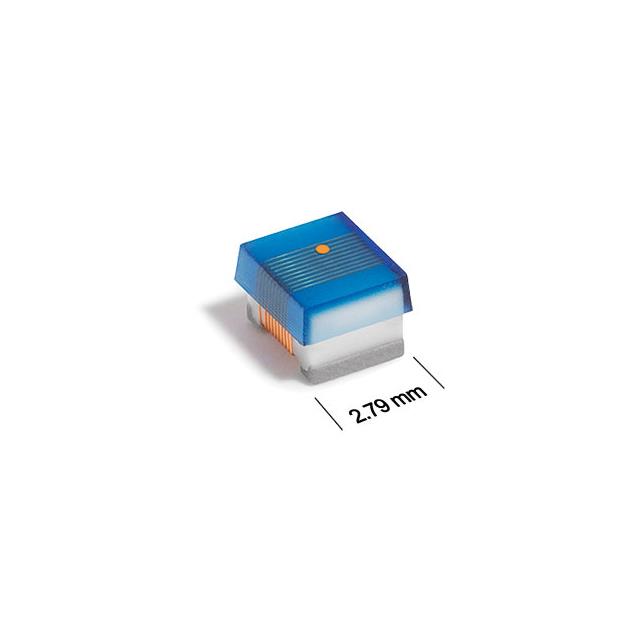

| Part number: | 1008CS-151XJRC |
| Description: | 1008CS-151XJRC |
| Manufacturer | COILCRAFT |
| Encapsulation | Strip |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "COILCRAFT" |
| Tolerance | ±5% |
| Package / Case | 1008 (2520 Metric) |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 700mOhm Max |
| Q @ Freq | 45 @ 100MHz |
| Frequency - Self Resonant | 850MHz |
| Ratings | AEC-Q200 |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 25 MHz |
| Supplier Device Package | 1008 |
| Height - Seated (Max) | 0.080" (2.03mm) |
| Inductance | 150 nH |
| Current Rating (Amps) | 580 mA |
|
