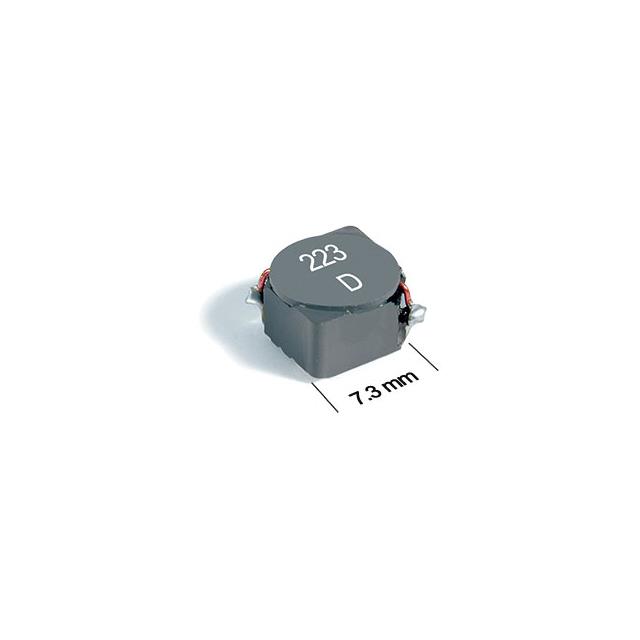

| Part number: | MSS7341-684KLD |
| Description: | POWER INDUCTOR, SHIELDED, 20/30% |
| Manufacturer | COILCRAFT |
| Encapsulation | Strip |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "COILCRAFT" |
| Tolerance | ±10% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 1.98Ohm Max |
| Frequency - Self Resonant | 2.5MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 220mA |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.161" (4.10mm) |
| Inductance | 680 µH |
| Current Rating (Amps) | 420 mA |
|
