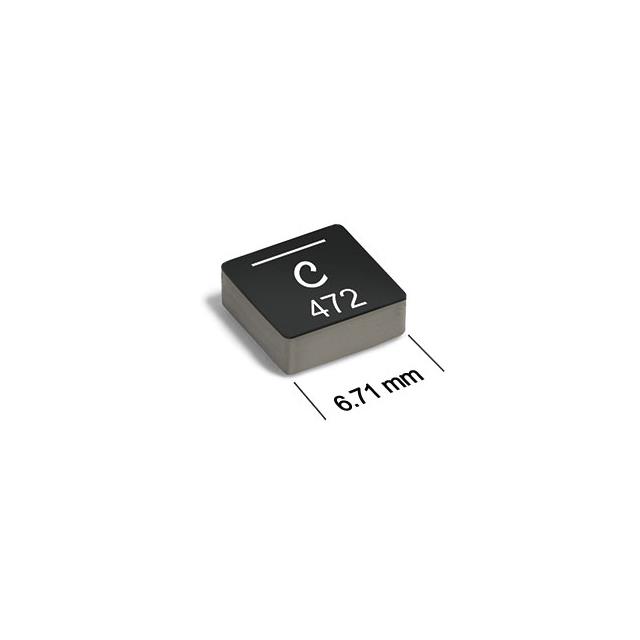

| Part number: | XGL6030-822MEC |
| Description: | POWER INDUCTOR, SHIELDED, COMPOS |
| Manufacturer | COILCRAFT |
| Encapsulation | Strip |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "COILCRAFT" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.264" L x 0.256" W (6.71mm x 6.51mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -40°C ~ 165°C |
| DC Resistance (DCR) | 40mOhm Max |
| Frequency - Self Resonant | 14MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 6.5A |
| Material - Core | Metal Composite |
| Inductance Frequency - Test | 1 MHz |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Inductance | 8.2 µH |
| Current Rating (Amps) | 7.1 A |
|
