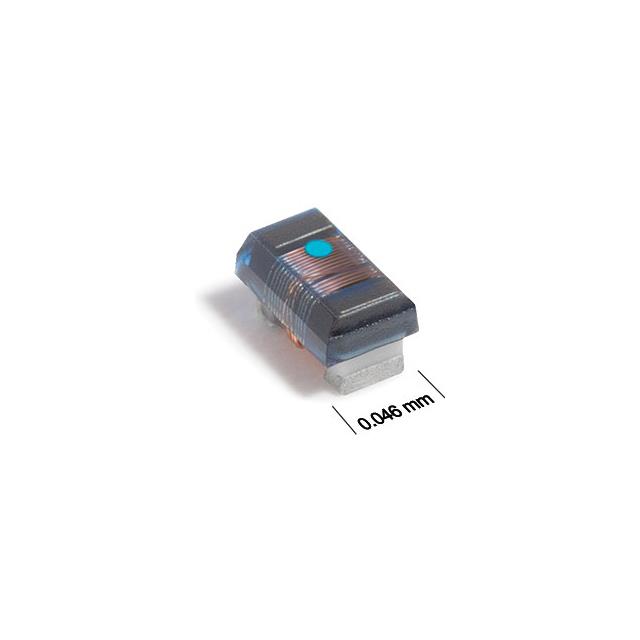

| Part number: | 0603LS-471XGRC |
| Description: | RF INDUCTOR, FERRITE CORE, 2% TO |
| Manufacturer | COILCRAFT |
| Encapsulation | Strip |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "COILCRAFT" |
| Tolerance | ±2% |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.071" L x 0.044" W (1.80mm x 1.12mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 100°C |
| DC Resistance (DCR) | 620mOhm Max |
| Q @ Freq | 15 @ 7.9MHz |
| Frequency - Self Resonant | 540MHz |
| Ratings | AEC-Q200 |
| Material - Core | Ceramic, Ferrite |
| Inductance Frequency - Test | 7.9 MHz |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.044" (1.11mm) |
| Inductance | 470 nH |
| Current Rating (Amps) | 420 mA |
|
