| Part number: | PJQ5848-AU_R2_000A1 |
| Description: | MOSFET 2N-CH 40V 8.6A/30A 8DFN |
| Manufacturer | PANJIT |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PANJIT" |

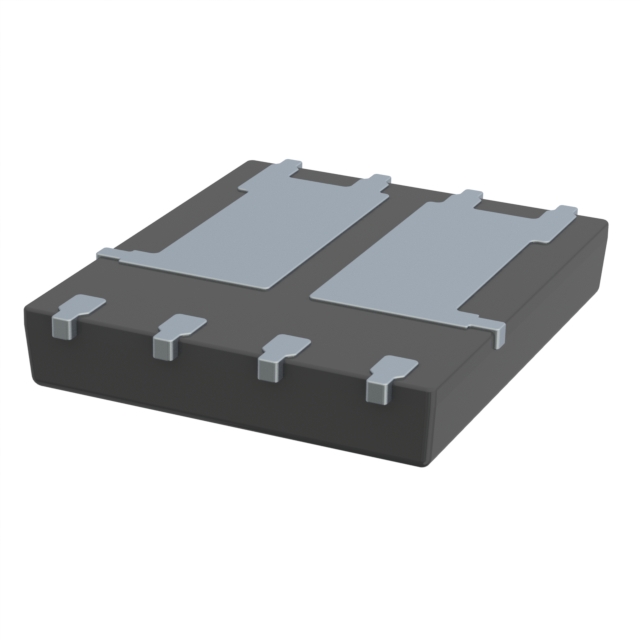

| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2W (Ta), 23.8W (Tc) |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 8.6A (Ta), 30A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 1040pF @ 20V |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 12A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 10nC @ 4.5V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | DFN5060B-8 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
|
