| Part number: | PJT7838_R1_00001 |
| Description: | MOSFET 2N-CH 50V 0.4A SOT363 |
| Manufacturer | PANJIT |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PANJIT" |

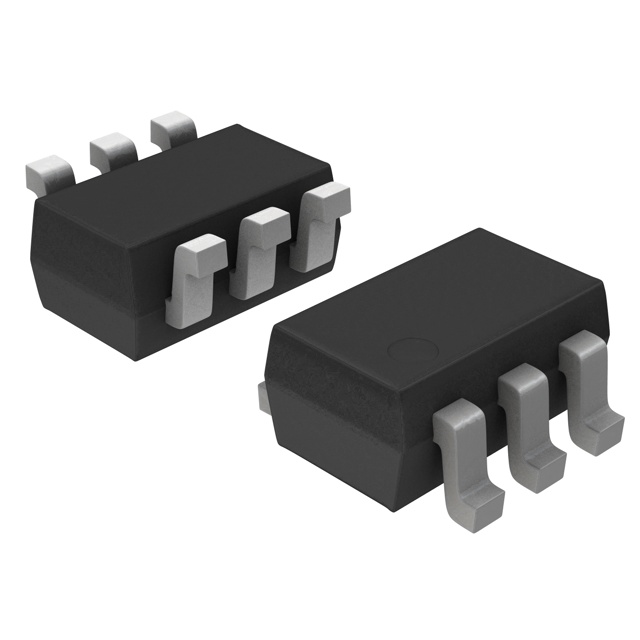

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 350mW (Ta) |
| Drain to Source Voltage (Vdss) | 50V |
| Current - Continuous Drain (Id) @ 25°C | 400mA (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 36pF @ 25V |
| Rds On (Max) @ Id, Vgs | 1.45Ohm @ 500mA, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 0.95nC @ 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | SOT-363 |
|
