| Part number: | PJL9850_R2_00001 |
| Description: | MOSFET 2N-CH 40V 5.4A 8SOP |
| Manufacturer | PANJIT |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PANJIT" |

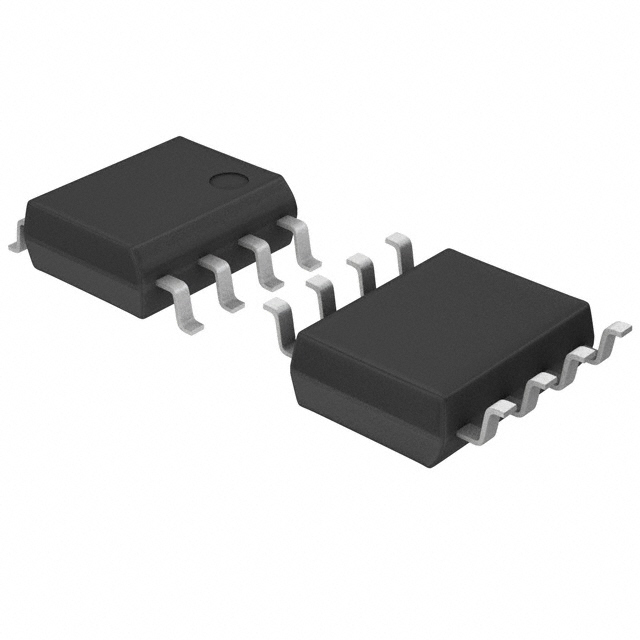

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.7W (Ta) |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 5.4A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 425pF @ 25V |
| Rds On (Max) @ Id, Vgs | 32mOhm @ 5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 4.4nC @ 4.5V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-SOP |
|
