| Part number: | PJQ5411_R2_00001 |
| Description: | 30V P-CHANNEL ENHANCEMENT MODE M |
| Manufacturer | PANJIT |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PANJIT" |

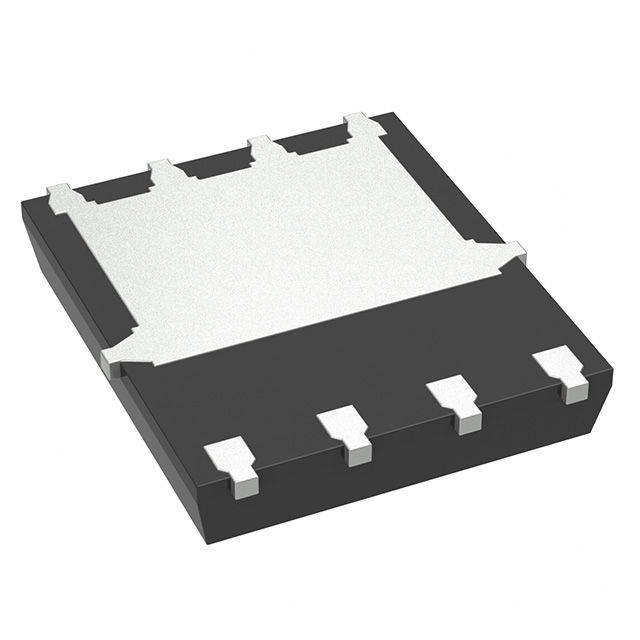

| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta), 45A (Tc) |
| Rds On (Max) @ Id, Vgs | 15.5mOhm @ 10A, 10V |
| Power Dissipation (Max) | 2W (Ta), 40W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | DFN5060-8 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1556 pF @ 15 V |
|
