| Part number: | NVMYS029N08LHTWG |
| Description: | T8 80V LL LFPAK |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |

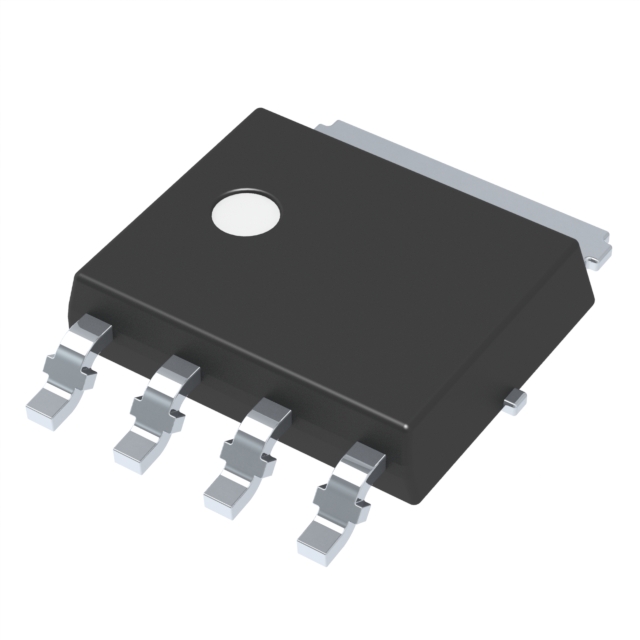

| Package / Case | SOT-1023, 4-LFPAK |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 7A (Ta), 22A (Tc) |
| Rds On (Max) @ Id, Vgs | 29mOhm @ 5A, 10V |
| Power Dissipation (Max) | 3.5W (Ta), 33W (Tc) |
| Vgs(th) (Max) @ Id | 2V @ 20µA |
| Supplier Device Package | LFPAK4 (5x6) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 431 pF @ 40 V |
| Qualification | AEC-Q101 |
|
