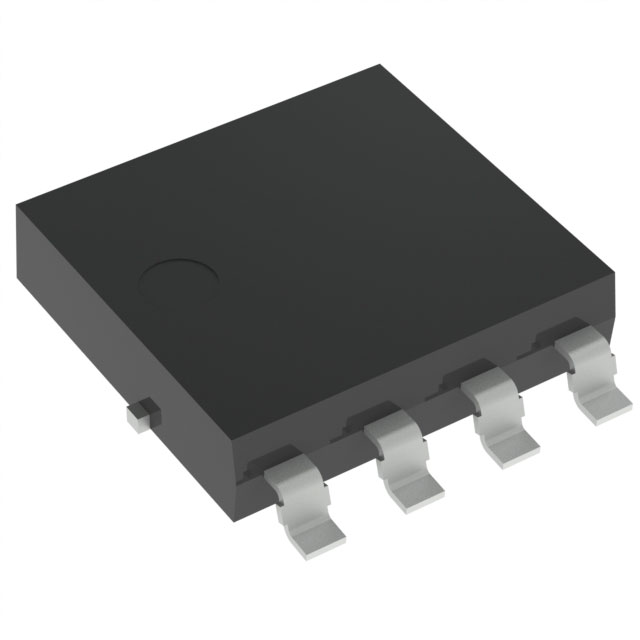

| Part number: | NVTYS010N06CLTWG |
| Description: | T6 60V N-CH LL IN LFPAK33 |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | SOT-1205, 8-LFPAK56 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 13A (Ta), 51A (Tc) |
| Rds On (Max) @ Id, Vgs | 9.8mOhm @ 25A, 10V |
| Power Dissipation (Max) | 3.1W (Ta), 47W (Tc) |
| Vgs(th) (Max) @ Id | 2V @ 35µA |
| Supplier Device Package | 8-LFPAK |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 910 pF @ 25 V |
| Qualification | AEC-Q101 |
|
