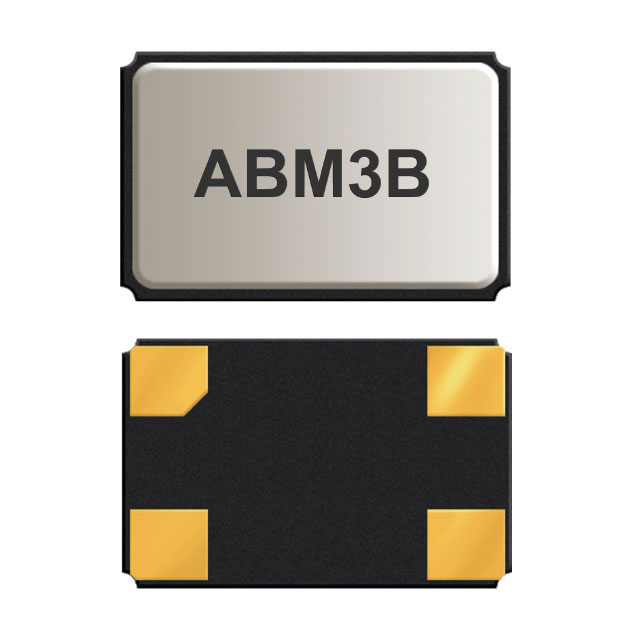

| Part number: | ABM3B-12.800MHZ-15-D1X-T |
| Description: | CRYSTAL 12.8000MHZ 15PF SMD |
| Manufacturer | Abracon |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Abracon" |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 15pF |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±20ppm |
| Frequency Tolerance | ±10ppm |
| Operating Mode | Fundamental |
| Height - Seated (Max) | 0.043" (1.10mm) |
| ESR (Equivalent Series Resistance) | 70 Ohms |
| Frequency | 12.8 MHz |
|
