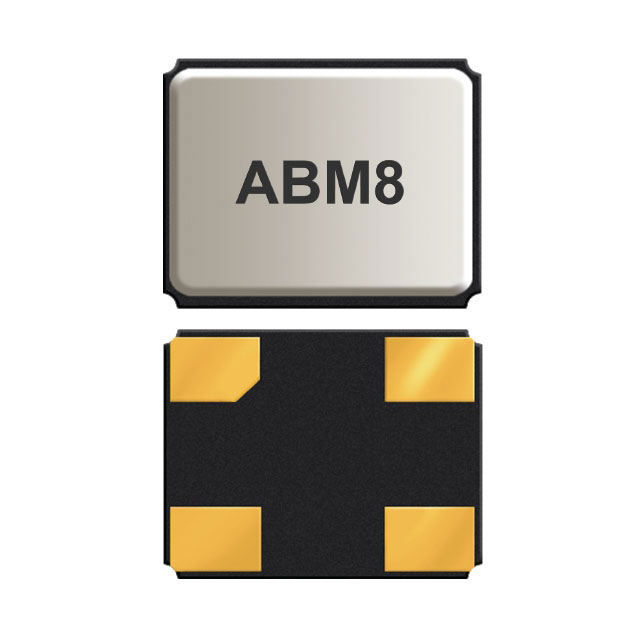

| Part number: | ABM8-20.000MHZ-10-R40-B1U-T |
| Description: | CRYSTAL 20.0000MHZ 10PF SMD |
| Manufacturer | Abracon |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Abracon" |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 10pF |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±10ppm |
| Frequency Tolerance | ±10ppm |
| Operating Mode | Fundamental |
| Height - Seated (Max) | 0.031" (0.80mm) |
| ESR (Equivalent Series Resistance) | 40 Ohms |
| Frequency | 20 MHz |
|
