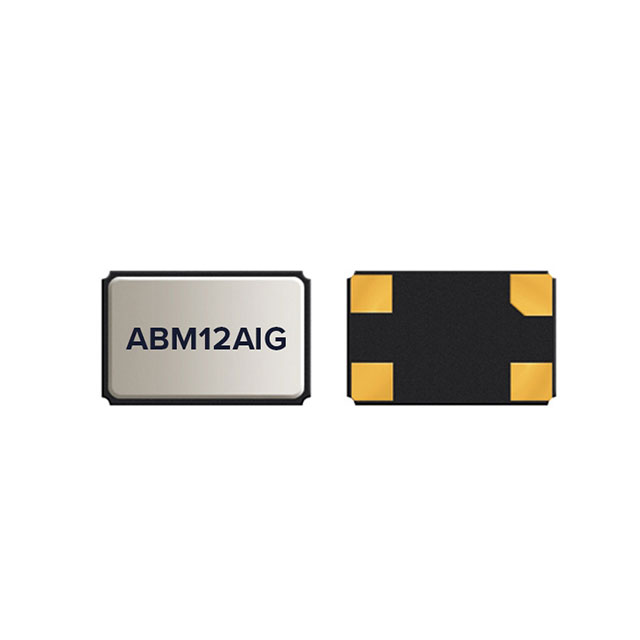

| Part number: | ABM12AIG-27.120MHZ-10-4Z-T |
| Description: | CRYSTAL 27.120MHZ 10PF SMD |
| Manufacturer | Abracon |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Abracon" |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 10pF |
| Size / Dimension | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 125°C |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±30ppm |
| Operating Mode | Fundamental |
| Ratings | AEC-Q200 |
| Height - Seated (Max) | 0.014" (0.35mm) |
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Frequency | 27.12 MHz |
|
