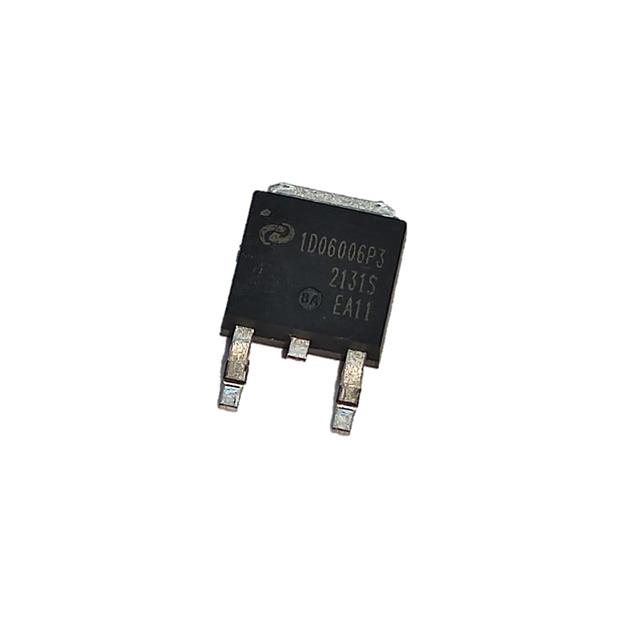

| Part number: | IV1D06006P3 |
| Description: | DIODE SIC 650V 16.7A TO252-3 |
| Manufacturer | Inventchip Technology |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Inventchip Technology" |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 224pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 16.7A |
| Supplier Device Package | TO-252-3 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.65 V @ 6 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 650 V |
|
