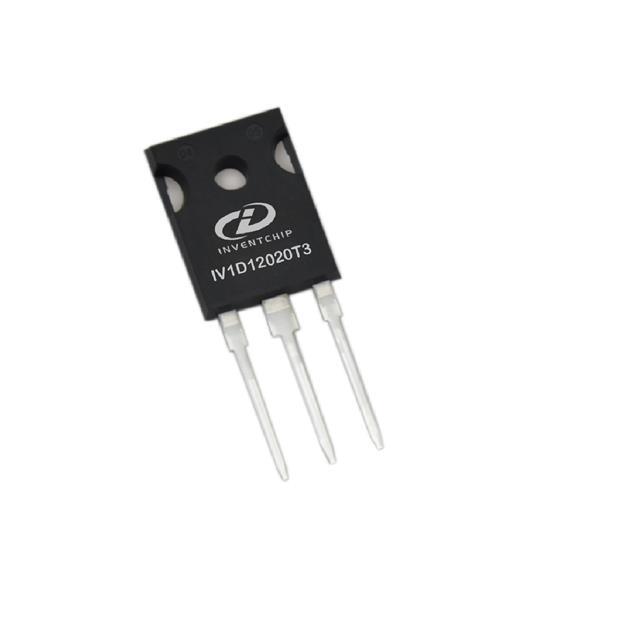

| Part number: | IV1D12020T3 |
| Description: | DIODE ARR SIC 1200V 30A TO247-3 |
| Manufacturer | Inventchip Technology |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Inventchip Technology" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 30A (DC) |
| Supplier Device Package | TO-247-3 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 20 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V |
|
