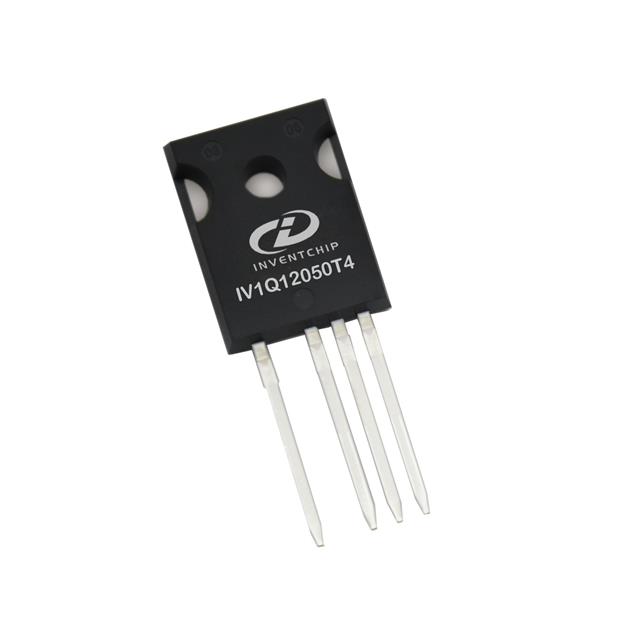

| Part number: | IV1Q12050T4 |
| Description: | SIC MOSFET, 1200V 50MOHM, TO-247 |
| Manufacturer | Inventchip Technology |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Inventchip Technology" |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | SiCFET (Silicon Carbide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 58A (Tc) |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 20A, 20V |
| Power Dissipation (Max) | 344W (Tc) |
| Vgs(th) (Max) @ Id | 3.2V @ 6mA |
| Supplier Device Package | TO-247-4 |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Vgs (Max) | +20V, -5V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Gate Charge (Qg) (Max) @ Vgs | 120 nC @ 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2750 pF @ 800 V |
|
