| Part number: | IV1D06006O2 |

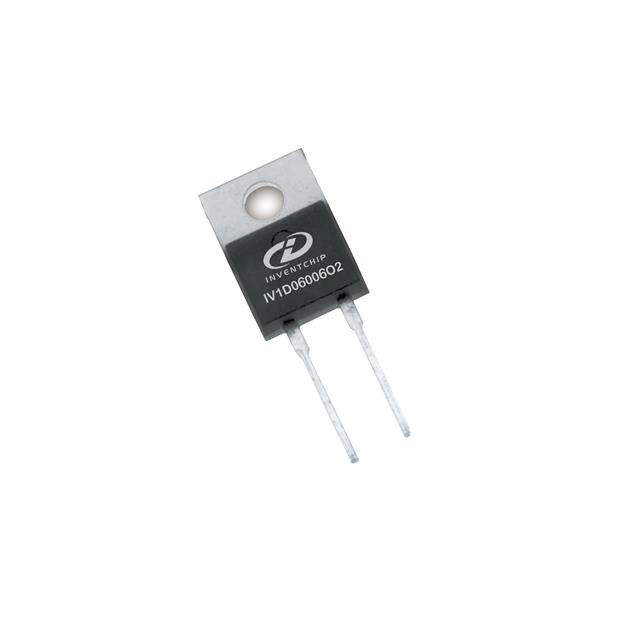

| Description: | DIODE SIL CARB 650V 17.4A TO220 |
| Manufacturer | Inventchip Technology |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Inventchip Technology" |
| Package / Case | TO-220-2 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 212pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 17.4A |
| Supplier Device Package | TO-220-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.65 V @ 6 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 650 V |
|
