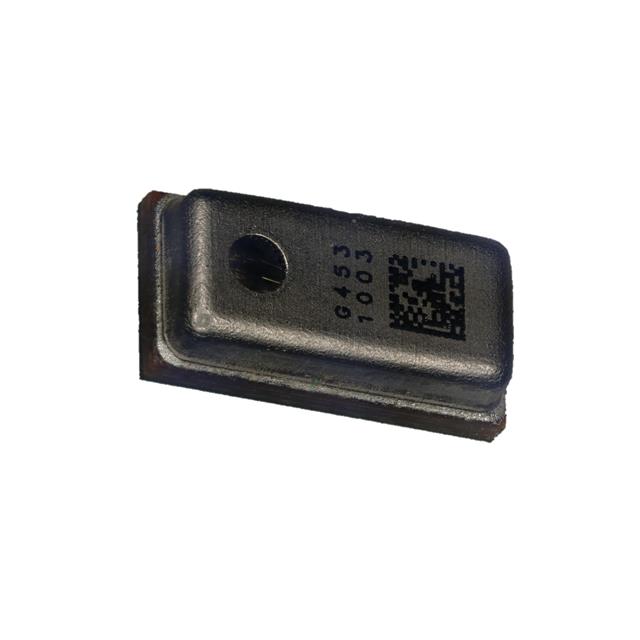

| Part number: | SD33OT261-003 |
| Description: | MIC MEMS DIGITAL -26DB OMNI |
| Manufacturer | Goertek Microelectronics |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 10000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Goertek Microelectronics" |
| Size / Dimension | 0.157" L x 0.079" W (4.00mm x 2.00mm) |
| Sensitivity | -26dB ±1dB @ 94dB SPL |
| Shape | Rectangular |
| Type | MEMS (Silicon) |
| S/N Ratio | 64dB |
| Termination | Solder Pads |
| Direction | Omnidirectional |
| Port Location | Top |
| Height (Max) | 0.047" (1.20mm) |
| Voltage - Rated | 1.8 V |
| Current - Supply | 750 µA |
| Voltage Range | 1.62 V ~ 3.6 V |
| Frequency Range | 100 Hz ~ 8 kHz |
|
