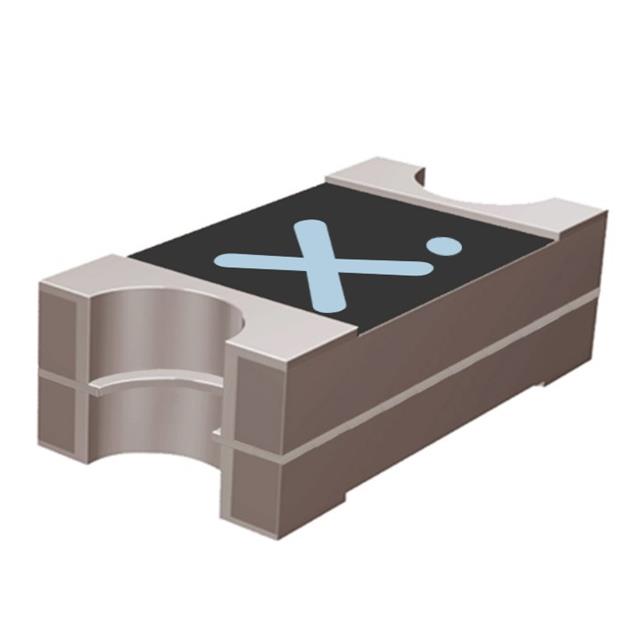

| Part number: | JAK 6002133 NA52 |
| Description: | FUSE BOARD MNT 12.5A 60VDC 1206 |
| Manufacturer | Matsuo Electric |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Matsuo Electric" |
| Package / Case | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.126" L x 0.063" W x 0.055" H (3.20mm x 1.60mm x 1.40mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Response Time | Fast Blow |
| Approval Agency | UL |
| DC Cold Resistance | 0.0036 Ohms |
| Breaking Capacity @ Rated Voltage | 100A |
| Current Rating (Amps) | 12.5 A |
| Voltage Rating - DC | 60 V |
|
