| Part number: | SISA10BDN-T1-GE3 |
| Description: | N-CHANNEL 30-V (D-S) MOSFET POWE |
| Manufacturer | Vishay / Siliconix |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay / Siliconix" |

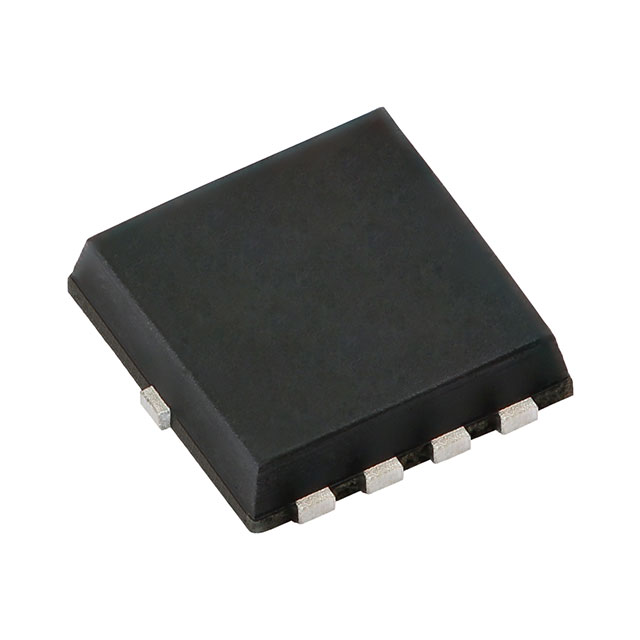

| Package / Case | PowerPAK® 1212-8 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 26A (Ta), 104A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.6mOhm @ 10A, 10V |
| Power Dissipation (Max) | 3.8W (Ta), 63W (Tc) |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Supplier Device Package | PowerPAK® 1212-8 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | +20V, -16V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 36.2 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1710 pF @ 15 V |
|
