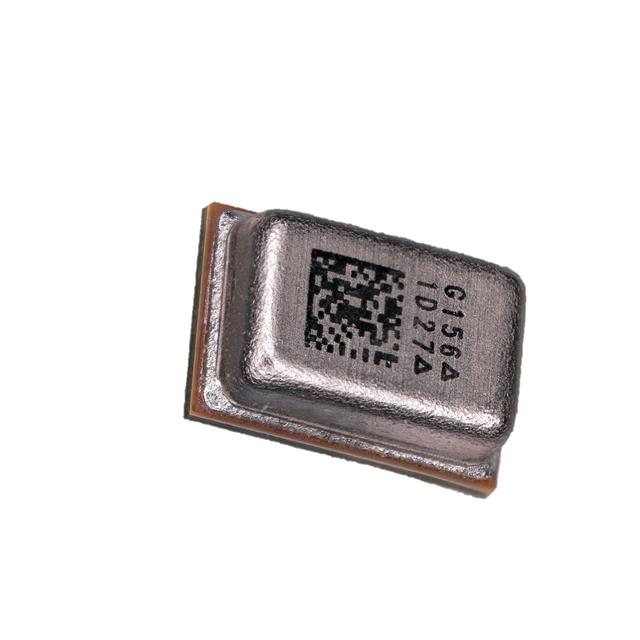

| Part number: | S15OB381-124 |
| Description: | MIC MEMS ANALOG -38dB OMNI |
| Manufacturer | Goertek Microelectronics |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 5500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Goertek Microelectronics" |
| Output Type | Analog |
| Size / Dimension | 0.108" L x 0.073" W (2.75mm x 1.85mm) |
| Sensitivity | -38dB ±1dB @ 94dB SPL |
| Shape | Rectangular |
| Type | MEMS (Silicon) |
| S/N Ratio | 62.5dB |
| Termination | Solder Pads |
| Direction | Omnidirectional |
| Port Location | Top |
| Height (Max) | 0.039" (1.00mm) |
| Impedance | 400 Ohms |
| Current - Supply | 150 µA |
| Voltage Range | 1.5 V ~ 3.6 V |
| Frequency Range | 100 Hz ~ 8 kHz |
|
