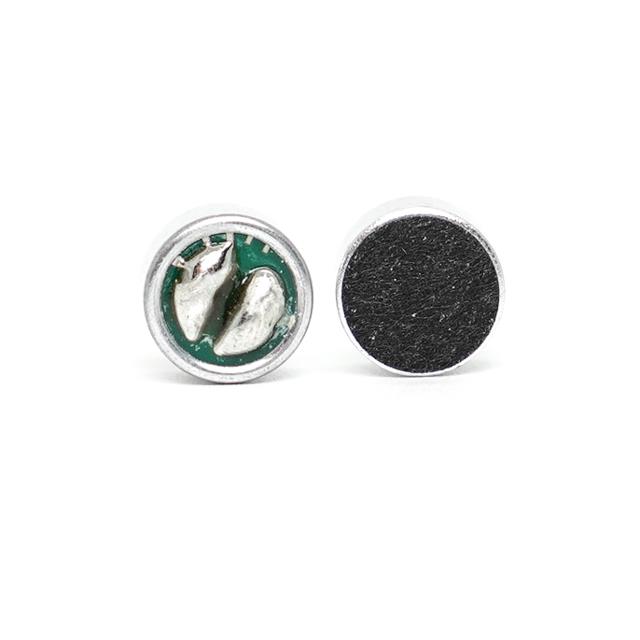

| Part number: | MEU-95PD-01-713-C1033 |
| Description: | MIC COND ANLG UNI -71DB 0.382"D |
| Manufacturer | Intervox |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Intervox" |
| Output Type | Analog |
| Size / Dimension | 0.382" Dia (9.70mm) |
| Sensitivity | -71dB ±3dB |
| Shape | Circular |
| Type | Electret Condenser |
| S/N Ratio | 38dB |
| Termination | Solder Pads |
| Direction | Unidirectional |
| Port Location | Top |
| Height (Max) | 0.207" (5.25mm) |
| Voltage - Rated | 1 V |
| Current - Supply | 500 µA |
| Voltage Range | 1 V ~ 10 V |
| Frequency Range | 100 Hz ~ 16 kHz |
|
