| Part number: | 83-878-RFX |
| Description: | CONN UHF RCPT STR SOLDER |
| Manufacturer | Connex (Amphenol RF) |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Connex (Amphenol RF)" |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder Cup |
| Impedance | Non-Constant |
| Mounting Type | Panel Mount |
| Operating Temperature | -65°C ~ 165°C |
| Fastening Type | Threaded |

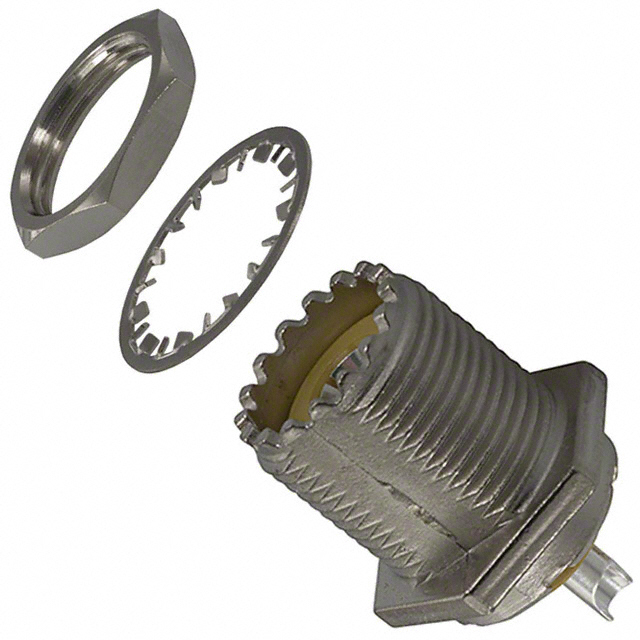

| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Connector Style | UHF |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Body Material | Zinc Die Cast |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Shield Termination | Solder |
| Center Contact Material | Brass |
| Body Finish | Nickel |
| Center Contact Plating | Silver |
| Frequency - Max | 300 MHz |
| Number of Ports | 1 |
| Voltage Rating | 500 V |
|
