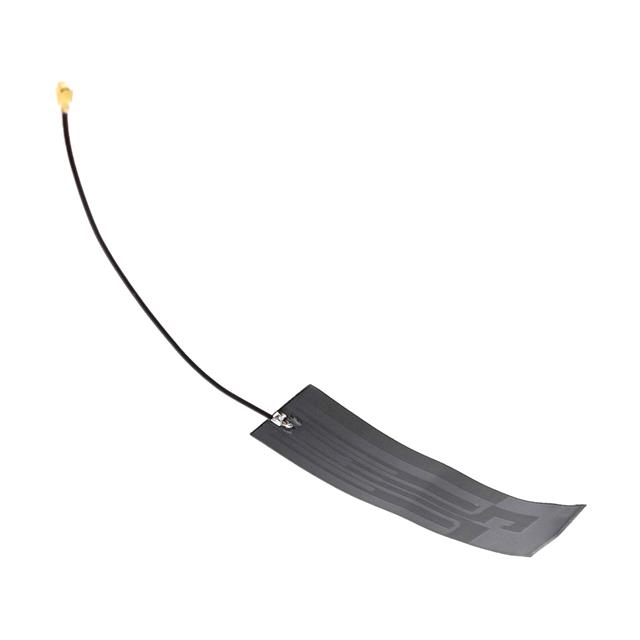

| Part number: | ANT-200421B77 |
| Description: | RF ANT, 5G/4G/3G/2G/NB-IOT/CAT M |
| Manufacturer | Adam Tech |
| Encapsulation | Bag |
| Quantity | 250 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Adam Tech" |
| Features | Cable - 101mm |
| Mounting Type | Adhesive |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 6GHz |
| Applications | 2G, 3G, 4G, 5G, LPWA |
| Gain | 0.5dBi, 2.1dBi, -2.6dBi, 3.9dBi |
| Termination | IPEX MHF1 |
| Number of Bands | 2 |
| VSWR | 2.7, 2.8 |
| Antenna Type | PCB Trace |
| Height (Max) | 0.005" (0.12mm) |
| Return Loss | -6.6dB, -7.2dB |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 3.855GHz |
| RF Family/Standard | Cellular |
| Power - Max | 5 W |
|
