| Part number: | ANT-21012EB56 |

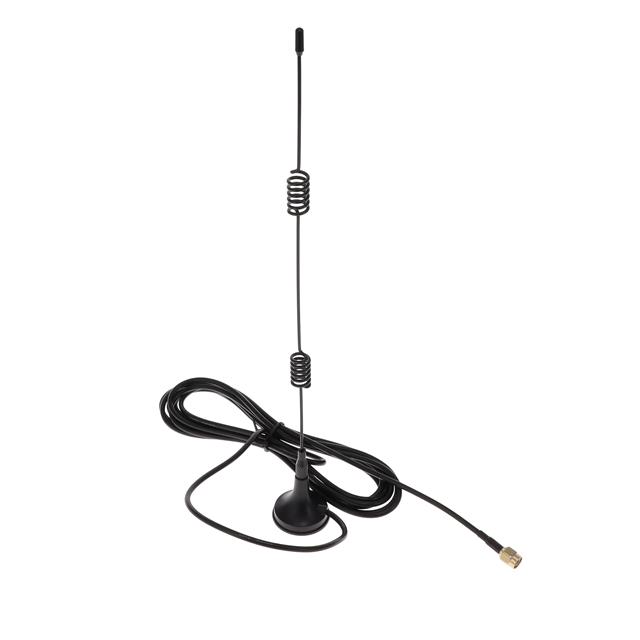

| Description: | RF ANT, 3G/2G, MAGNETIC WHIP |
| Manufacturer | Adam Tech |
| Encapsulation | Bag |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Adam Tech" |
| Features | Cable - 2.5m |
| Mounting Type | Magnetic |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Applications | 2G, 3G, GNSS |
| Gain | -2.6dBi, 3.1dBi, 2.2dBi, 4.8dBi |
| Termination | SMA Male |
| Number of Bands | 2 |
| VSWR | 2.5, 3.5 |
| Antenna Type | Whip, Straight |
| Height (Max) | 10.354" (263.00mm) |
| Return Loss | -5dB, -7dB |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 892MHz, 1.94GHz |
| RF Family/Standard | Cellular, Navigation |
| Power - Max | 25 W |
|
