| Part number: | ANT-190541B97 |

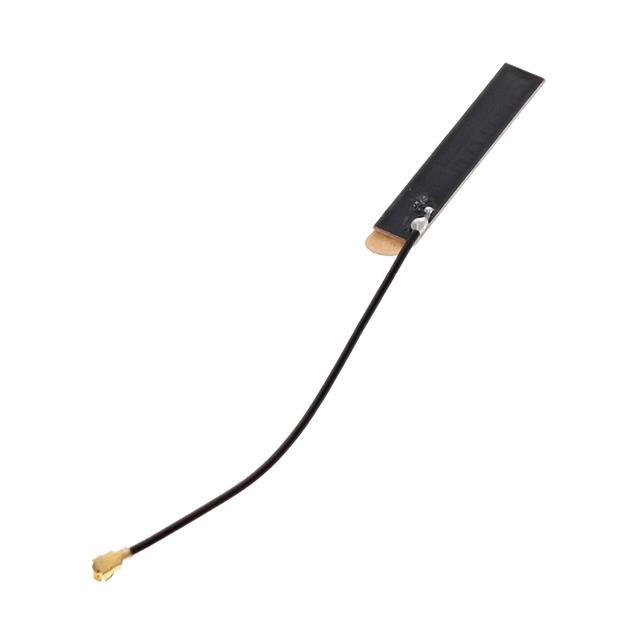

| Description: | RF ANT. 3G/2G, OMNI-DIRECTIONAL, |
| Manufacturer | Adam Tech |
| Encapsulation | Bag |
| Quantity | 250 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Adam Tech" |
| Features | Cable - 70mm |
| Mounting Type | Adhesive |
| Frequency Range | 800MHz ~ 2.1GHz |
| Applications | 2G, 3G |
| Gain | 1.5dBi, 2dBi |
| Termination | IPEX |
| Number of Bands | 1 |
| VSWR | 5 |
| Antenna Type | PCB Trace |
| Height (Max) | 0.031" (0.80mm) |
| Return Loss | -3.5dB |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.45GHz |
| RF Family/Standard | Cellular |
| Power - Max | 5 W |
|
