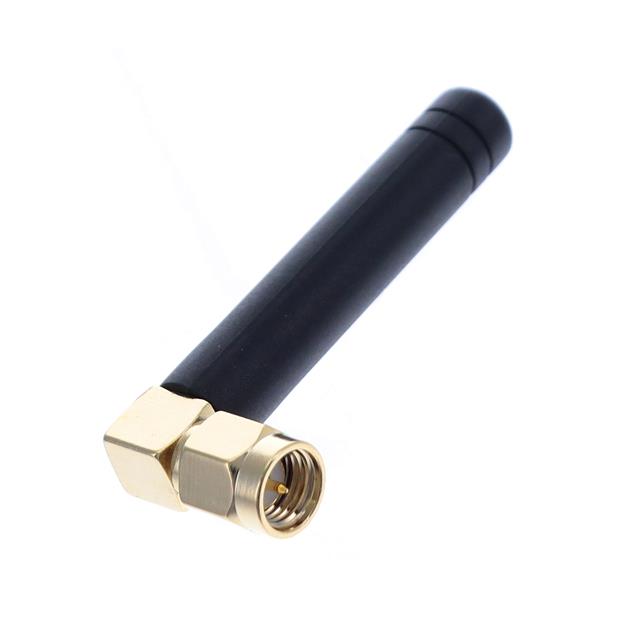

| Part number: | ANT-20284EB56 |
| Description: | RF ANT, 4G/3G/2G/NB-IOT, OMNI-DI |
| Manufacturer | Adam Tech |
| Encapsulation | Bag |
| Quantity | 250 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Adam Tech" |
| Mounting Type | Connector Mount |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Applications | 2G, 3G, 4G |
| Gain | -4dBi, 3dBi, -0.5dBi, 3.5dBi |
| Termination | SMA Male |
| Number of Bands | 2 |
| VSWR | 5, 10 |
| Antenna Type | Whip, Right Angle |
| Height (Max) | 1.913" (48.60mm) |
| Return Loss | -1.5dB, -3.5dB |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.94GHz |
| RF Family/Standard | Cellular |
| Power - Max | 25 W |
|
