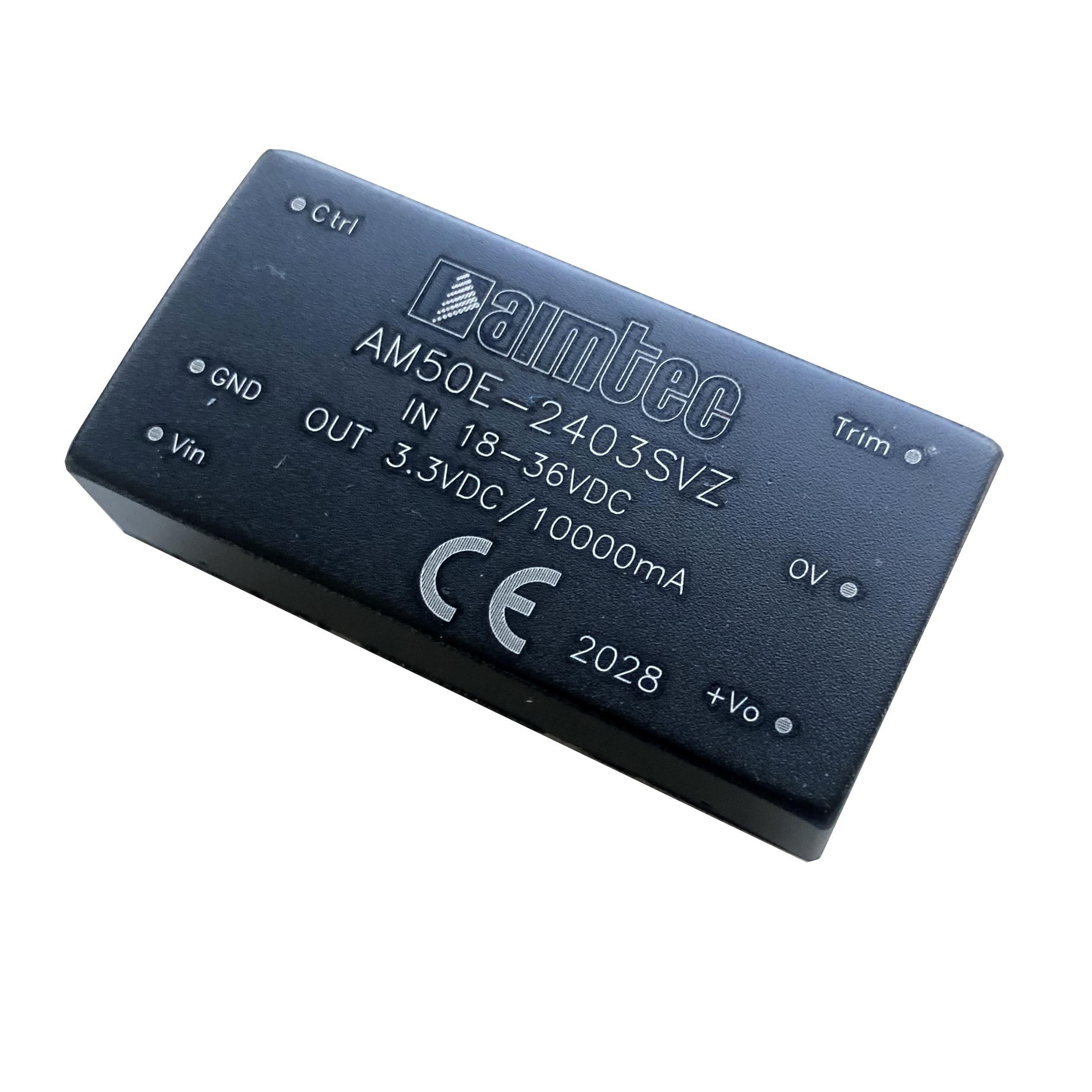

| Part number: | AM50E-2403SVZ-STD |
| Description: | 33W DC/DC Converter |
| Manufacturer | Aimtec |
| Encapsulation | Box |
| Quantity | 5 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Aimtec" |
| Power (Watts) | 33W |
| Size / Dimension | 2.99" L x 1.24" W x 1.02" H (75.9mm x 31.5mm x 25.9mm) |
| Mounting Type | Chassis Mount |
| Type | Enclosed |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 36V |
| Efficiency | 91% |
| Current - Output (Max) | 10A |
| Voltage - Input (Min) | 18V |
| Voltage - Output 1 | 3.3V |
| Number of Outputs | 1 |
| Voltage - Isolation | 1.5 kV |
| Standard Number | 62368-1 |
|
