| Part number: | 1019545 |

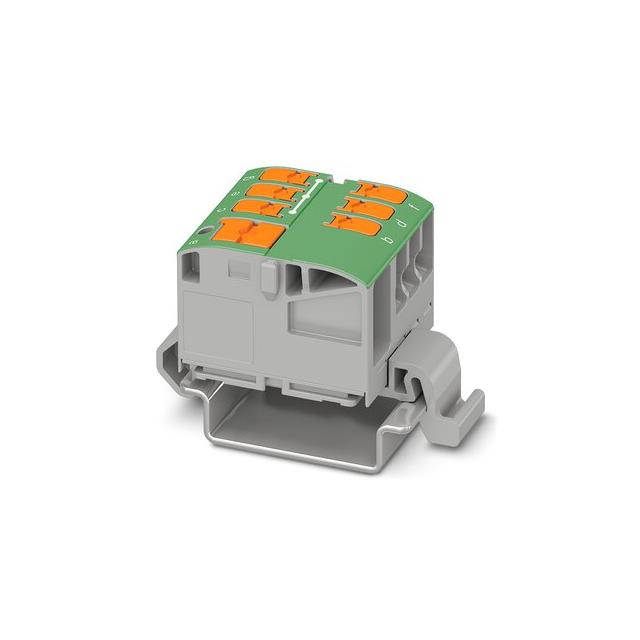

| Description: | DISTRIBUTION BLOCK, NOM. VOLTAGE |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Features | Block of 3 |
| Mounting Type | DIN Rail |
| Length | 1.799" (45.70mm) |
| Type | Middle |
| Operating Temperature | -60°C ~ 105°C |
| Termination Style | Push In, Spring |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 16.0mm |
| Wire Gauge or Range - AWG | 8-20 AWG |
| Height (Max) | 1.150" (29.20mm) |
| Housing Color | Green |
| Stripping Length | 12mm |
| Current - UL | 5 A |
| Current - IEC | 24 A |
| Voltage - IEC | 690 V |
| Voltage - UL | 600 V |
| Number of Positions | 7 |
|
