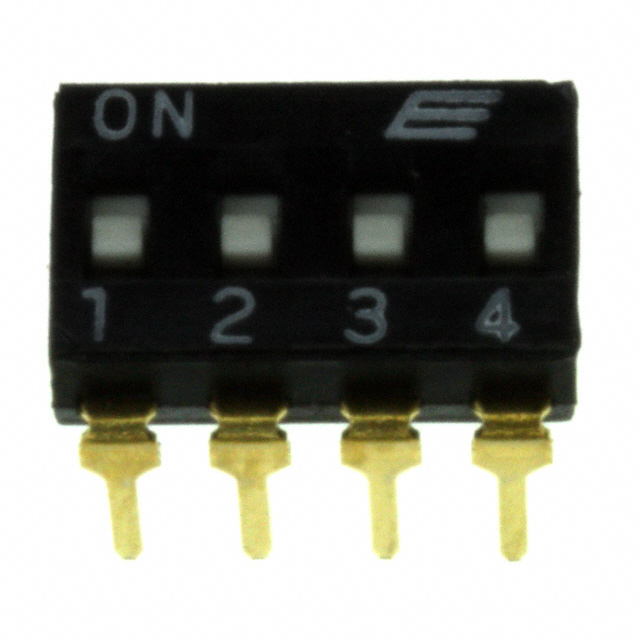

| Part number: | KAJ04SHGT |
| Description: | SWITCH SLIDE DIP SPST 0.025A 24V |
| Manufacturer | E-Switch |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "E-Switch" |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Current Rating (Amps) | 25mA |
| Mounting Type | Through Hole |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | SPST |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Actuator Type | Slide (Standard) |
| Height Above Board | 0.142" (3.60mm) |
| Actuator Level | Flush, Recessed |
| Washable | No |
| Contact Material | Copper Alloy |
| Number of Positions | 4 |
|
