| Part number: | HAT1044M-EL-E |
| Description: | HAT1044M-EL-E - SILICON P CHANNE |
| Manufacturer | Renesas |
| Encapsulation | Bulk |
| Quantity | 449 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Renesas" |

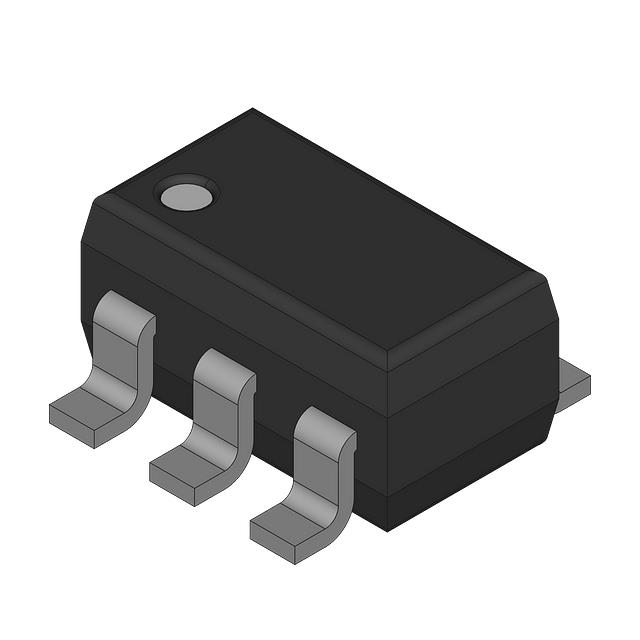

| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 60mOhm @ 3A, 10V |
| Power Dissipation (Max) | 1.05W (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | 6-TSOP |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 600 pF @ 10 V |
|
