TYPE	DESCRIPTION
Mfr	"Renesas"

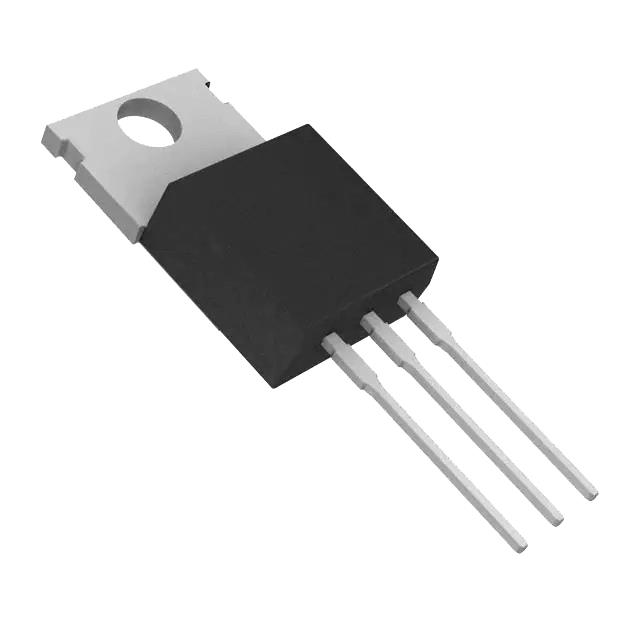

Package / Case	TO-220-3
Mounting Type	Through Hole
Operating Temperature	150°C
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Rds On (Max) @ Id, Vgs	14mOhm @ 40A, 10V
Power Dissipation (Max)	1.5W (Ta), 84W (Tc)
Vgs(th) (Max) @ Id	2.5V @ 1mA
Supplier Device Package	TO-220AB
Drive Voltage (Max Rds On, Min Rds On)	10V
Vgs (Max)	±20V
Drain to Source Voltage (Vdss)	60 V
Gate Charge (Qg) (Max) @ Vgs	60 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	3200 pF @ 10 V
