| Part number: | 2SK3714-S12-AZ |
| Description: | 2SK3714-S12-AZ - SWITCHING N-CHA |
| Manufacturer | Renesas |
| Encapsulation | Bulk |
| Quantity | 150 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Renesas" |

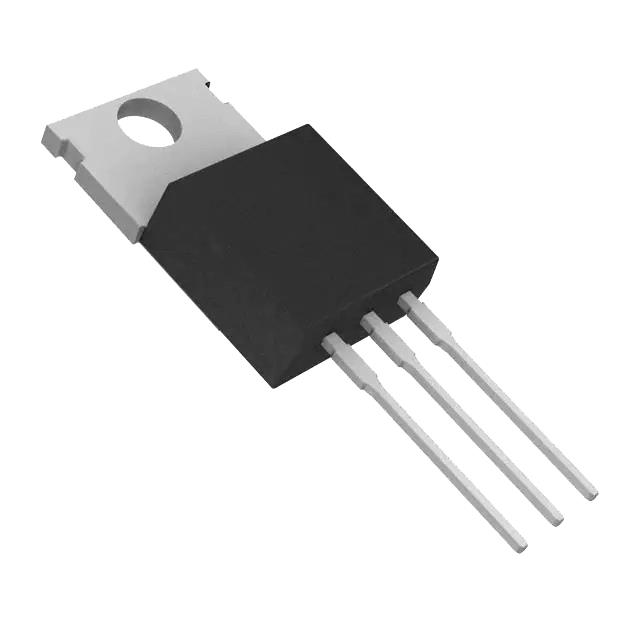

| Package / Case | TO-220-3 Isolated Tab |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 50A (Tc) |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 25A, 10V |
| Power Dissipation (Max) | 2W (Ta), 35W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | MP-45F |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 60 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3200 pF @ 10 V |
|
