| Part number: | SF-3812F5000T-2 |

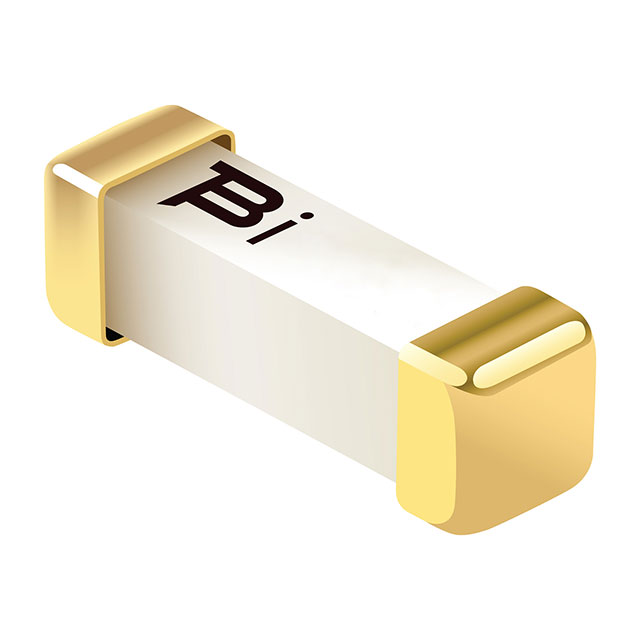

| Description: | FUSE BRD MT 50A 250VAC 100VDC |
| Manufacturer | J.W. Miller / Bourns |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "J.W. Miller / Bourns" |
| Package / Case | 2-SMD, Square End Block |
| Size / Dimension | 0.398" L x 0.122" W x 0.122" H (10.10mm x 3.10mm x 3.10mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Fast Blow |
| Approval Agency | cUL, UL |
| DC Cold Resistance | 0.00108 Ohms |
| Breaking Capacity @ Rated Voltage | 100A |
| Current Rating (Amps) | 50 A |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 100 V |
| Melting I²t | 3150 |
|
