| Part number: | PDTA114EQB-QZ |
| Description: | TRANS PREBIAS PNP 50V 0.1A 3DFN |
| Manufacturer | Nexperia |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 5000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nexperia" |

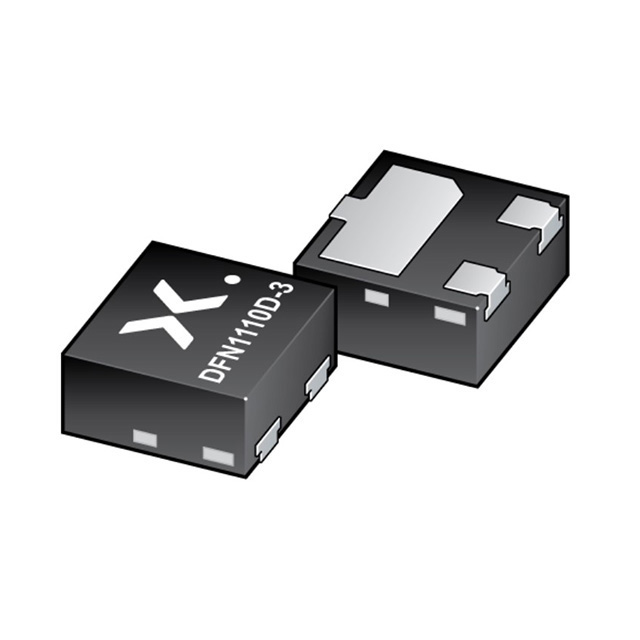

| Package / Case | 3-XDFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Transistor Type | PNP - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V |
| Supplier Device Package | DFN1110D-3 |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 340 mW |
| Frequency - Transition | 180 MHz |
| Resistor - Base (R1) | 10 kOhms |
| Resistor - Emitter Base (R2) | 10 kOhms |
| Qualification | AEC-Q101 |
|
