TYPE	DESCRIPTION
Mfr	"Vishay / Siliconix"

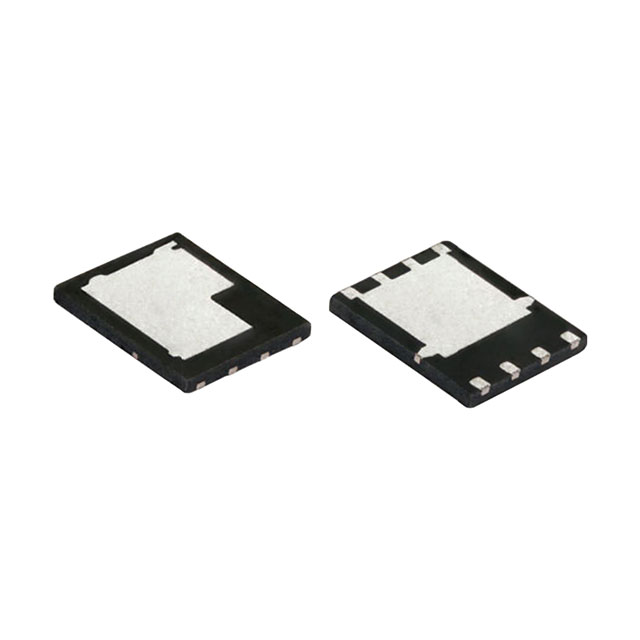

Package / Case	PowerPAK® SO-8
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	82A (Ta), 100A (Tc)
Rds On (Max) @ Id, Vgs	0.62mOhm @ 20A, 10V
Power Dissipation (Max)	6.25W (Ta), 125W (Tc)
Vgs(th) (Max) @ Id	2.2V @ 250µA
Supplier Device Package	PowerPAK® SO-8DC
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Vgs (Max)	+20V, -16V
Drain to Source Voltage (Vdss)	30 V
Gate Charge (Qg) (Max) @ Vgs	188 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	9530 pF @ 15 V
