| Part number: | SQJ914EP-T1_BE3 |
| Description: | MOSFET 2N-CH 30V 30A PPAK SO8 |
| Manufacturer | Vishay / Siliconix |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Vishay / Siliconix" |

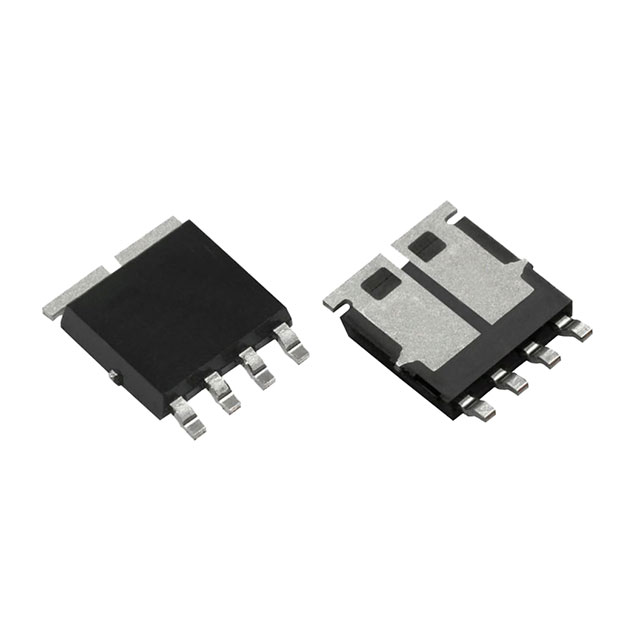

| Package / Case | PowerPAK® SO-8 Dual |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 27W (Tc) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 1110pF @ 15V |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 4.5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 25nC @ 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | PowerPAK® SO-8 Dual |
| Grade | Automotive |
| Qualification | AEC-Q101 |
|
