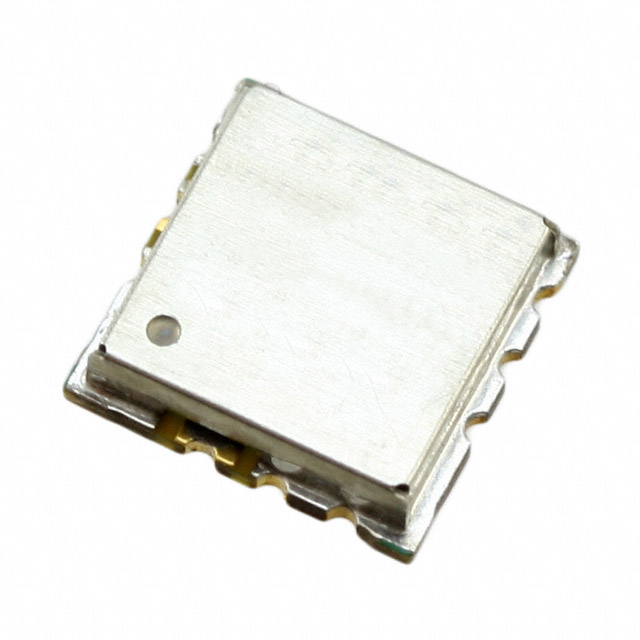

| Part number: | CVCO33CL-0415-0435 |
| Description: | VCO 425MHZ 0.5-4.5V 7.62X7.62MM |
| Manufacturer | Crystek Corporation |
| Encapsulation | Strip |
| Quantity | 5 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Crystek Corporation" |
| Package / Case | 12-QFN, Variant |
| Size / Dimension | 0.300" L x 0.300" W (7.62mm x 7.62mm) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Height | 0.079" (2.00mm) |
| Frequency Range | 415 ~ 435MHz |
| 2nd Harmonic, Typ (dBc) | -15 |
| Frequency - Center | 425MHz |
| Icc Max | 15mA |
| Pushing (MHz/V) | 1 |
| Phase Noise Typ (dBc/Hz) | -103 |
| Power (dBm) | 3 ±3 |
| Tuning Voltage (VDC) | 0.5 V ~ 4.5 V |
|
