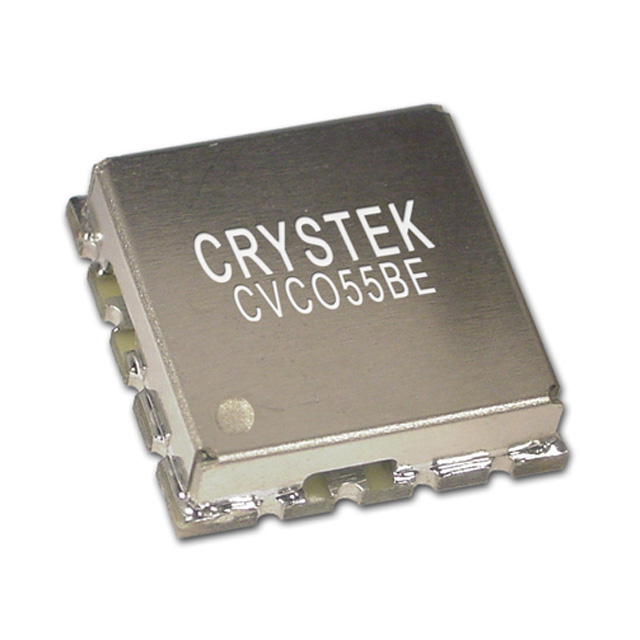

| Part number: | CVCO55BE-2060-2300 |
| Description: | VCO 2180MHZ 0.3-4.7V 12.7X12.7MM |
| Manufacturer | Crystek Corporation |
| Encapsulation | Strip |
| Quantity | 5 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Crystek Corporation" |
| Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Height | 0.150" (3.81mm) |
| Frequency Range | 2060 ~ 2300MHz |
| 2nd Harmonic, Typ (dBc) | -15 |
| Frequency - Center | 2180MHz |
| Icc Max | 33mA |
| Pushing (MHz/V) | 2 |
| Phase Noise Typ (dBc/Hz) | -100 |
| Power (dBm) | 4.5 ±2.5 |
| Tuning Voltage (VDC) | 0.3 V ~ 4.7 V |
|
