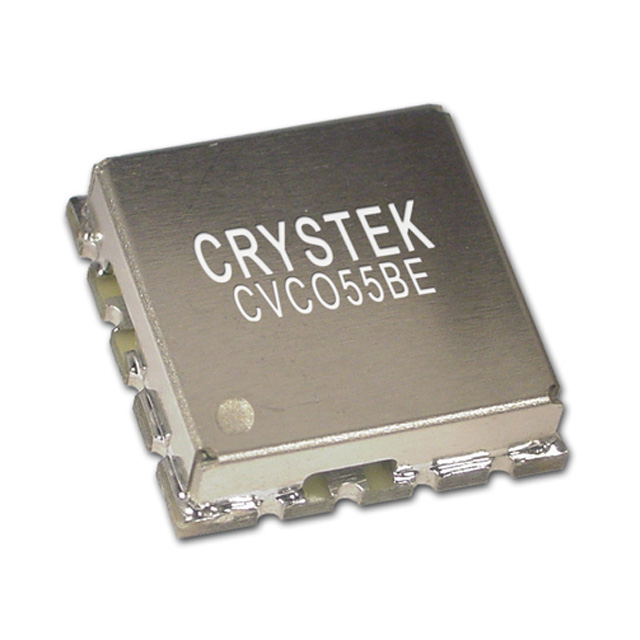

| Part number: | CVCO55BE-1000-1500 |
| Description: | VCO 1250MHZ 0.5-4.5V 12.7X12.7MM |
| Manufacturer | Crystek Corporation |
| Encapsulation | Strip |
| Quantity | 5 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Crystek Corporation" |
| Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V |
| Height | 0.150" (3.81mm) |
| Frequency Range | 1000 ~ 1500MHz |
| 2nd Harmonic, Typ (dBc) | -15 |
| Frequency - Center | 1250MHz |
| Icc Max | 10mA |
| Pushing (MHz/V) | 6 |
| Phase Noise Typ (dBc/Hz) | -95 |
| Power (dBm) | 3 ±3 |
| Tuning Voltage (VDC) | 0.5 V ~ 4.5 V |
|
