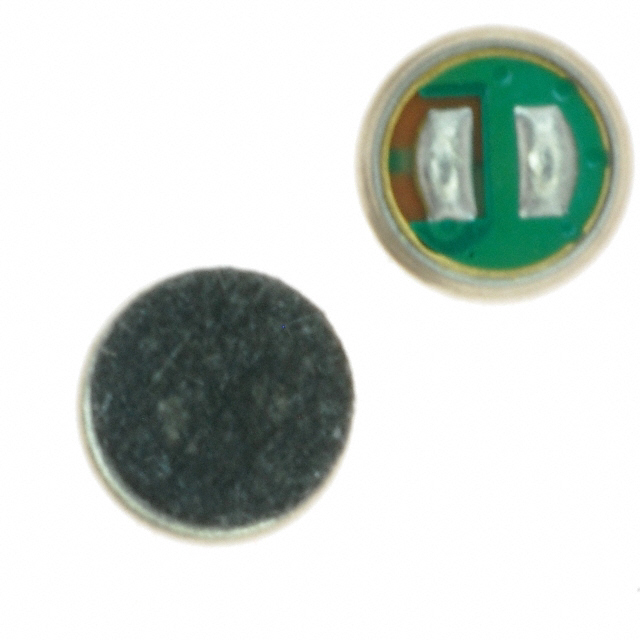

| Part number: | MB3015ASC-2 |
| Description: | MIC COND ANLG OMNI -44DB 0.118"D |
| Manufacturer | Knowles |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Knowles" |
| Output Type | Analog |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Sensitivity | -44dB ±3dB @ 94dB SPL |
| Shape | Circular |
| Type | Electret Condenser |
| S/N Ratio | 55dB |
| Termination | Solder Pads |
| Direction | Omnidirectional |
| Port Location | Top |
| Height (Max) | 0.073" (1.85mm) |
| Voltage - Rated | 2 V |
| Impedance | 2.2 kOhms |
| Current - Supply | 500 µA |
| Voltage Range | 1.5 V ~ 10 V |
| Frequency Range | 100 Hz ~ 10 kHz |
|
