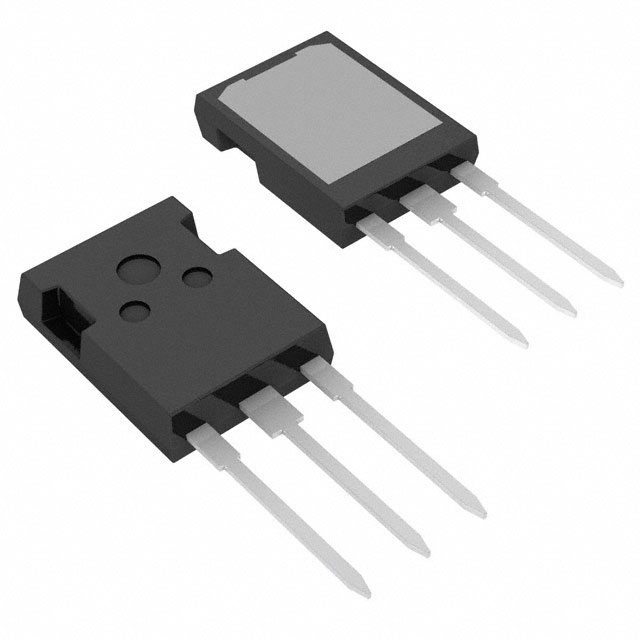

| Part number: | CS60-16IO1 |
| Description: | SCR 1.6KV 75A PLUS247-3 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-247-3 Variant |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 140°C |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1500A, 1600A |
| Current - On State (It (AV)) (Max) | 48 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.4 V |
| Current - Off State (Max) | 10 mA |
| Supplier Device Package | PLUS247™-3 |
| Current - On State (It (RMS)) (Max) | 75 A |
| Voltage - Off State | 1.6 kV |
|
