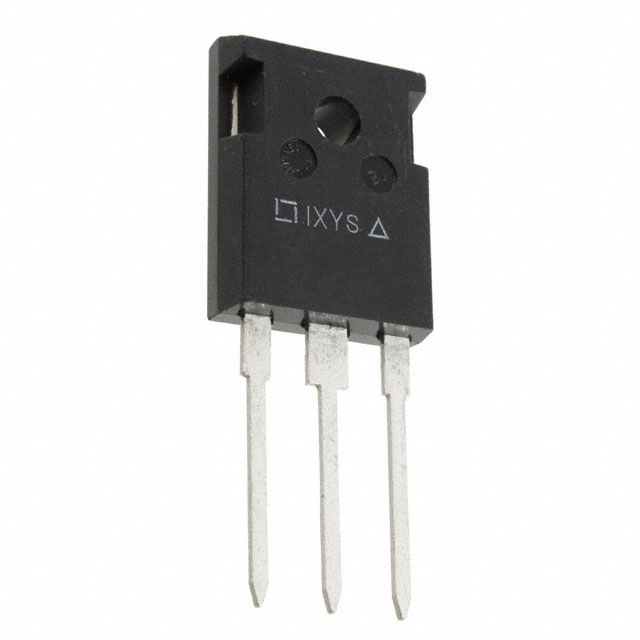

| Part number: | IXDH35N60B |
| Description: | IGBT 600V 60A 250W TO247AD |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 35A |
| Supplier Device Package | TO-247AD |
| IGBT Type | NPT |
| Switching Energy | 1.6mJ (on), 800µJ (off) |
| Test Condition | 300V, 35A, 10Ohm, 15V |
| Gate Charge | 120 nC |
| Current - Collector (Ic) (Max) | 60 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 70 A |
| Power - Max | 250 W |
|
