| Part number: | IXGA20N120 |
| Description: | IGBT 1200V 40A 150W TO263 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |

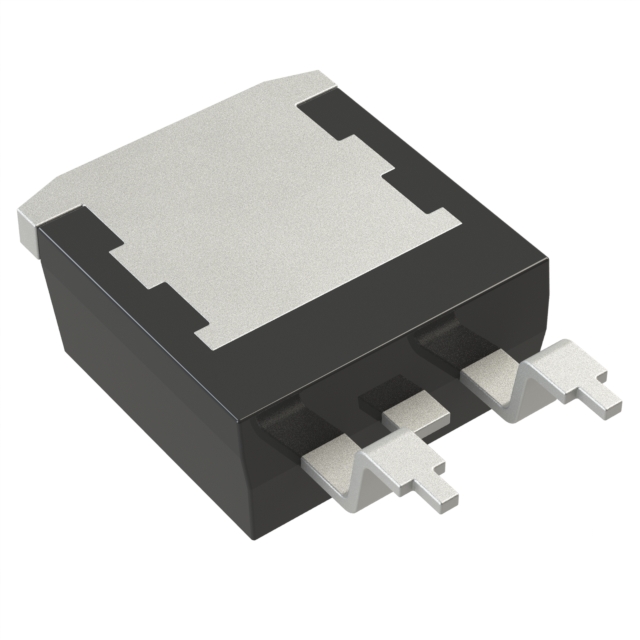

| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 20A |
| Supplier Device Package | TO-263AA |
| IGBT Type | PT |
| Td (on/off) @ 25°C | 28ns/400ns |
| Switching Energy | 6.5mJ (off) |
| Test Condition | 800V, 20A, 47Ohm, 15V |
| Gate Charge | 63 nC |
| Current - Collector (Ic) (Max) | 40 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 80 A |
| Power - Max | 150 W |
|
